iSTEEL POOL

iSteel Pool is a prefabricated swimming pool system from J.D. Pools, designed for customers who want an internationally certified, high-quality pool within a manageable budget and with a fast installation timeline.

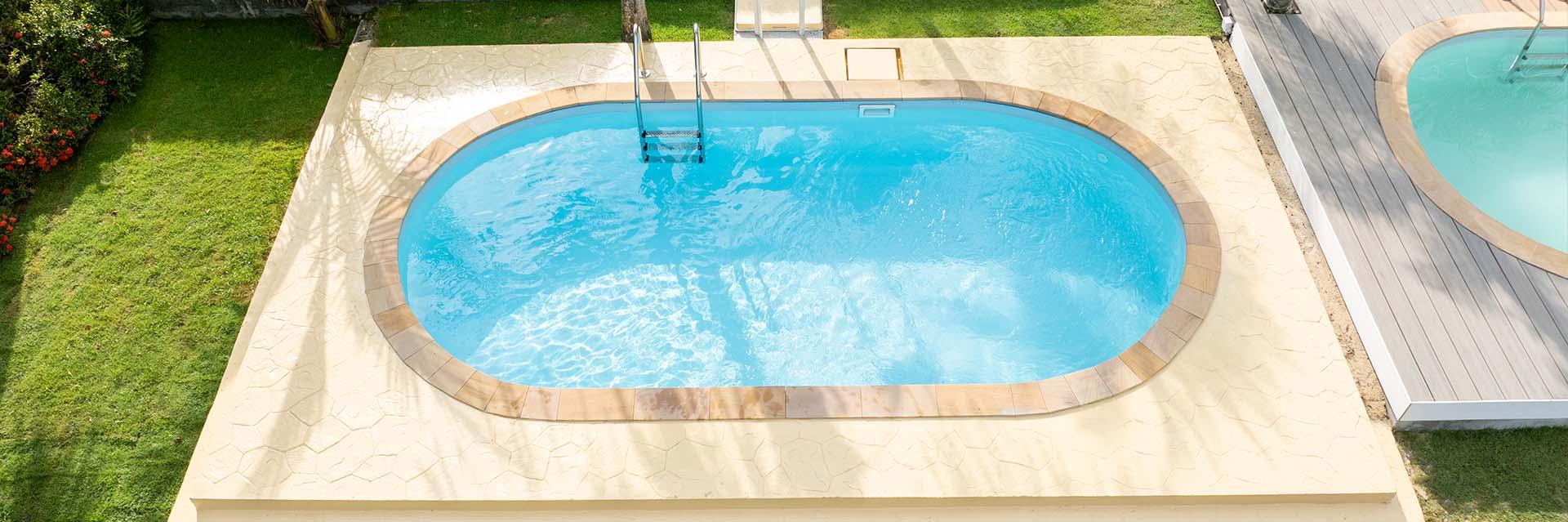

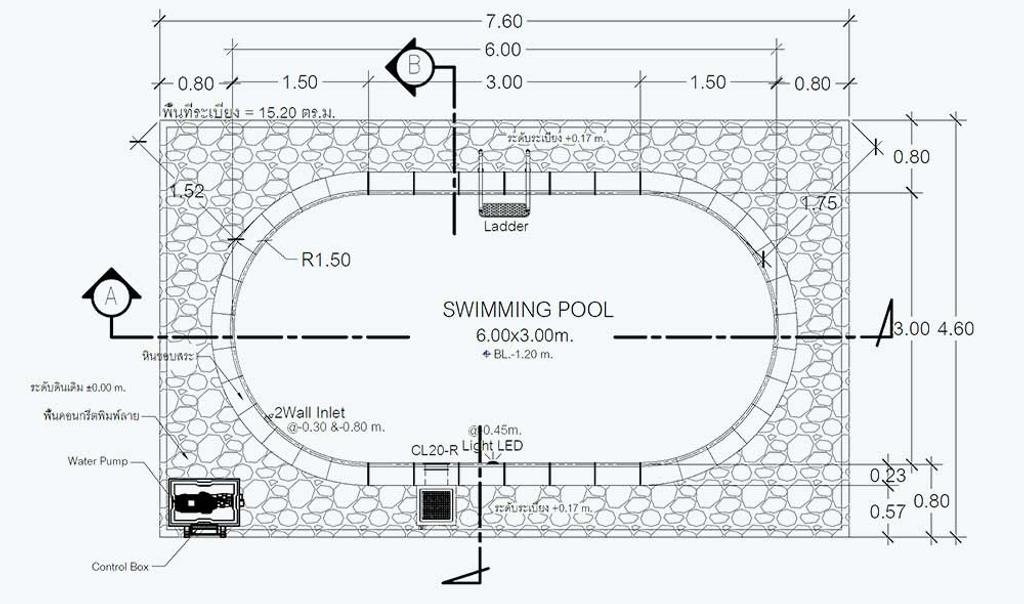

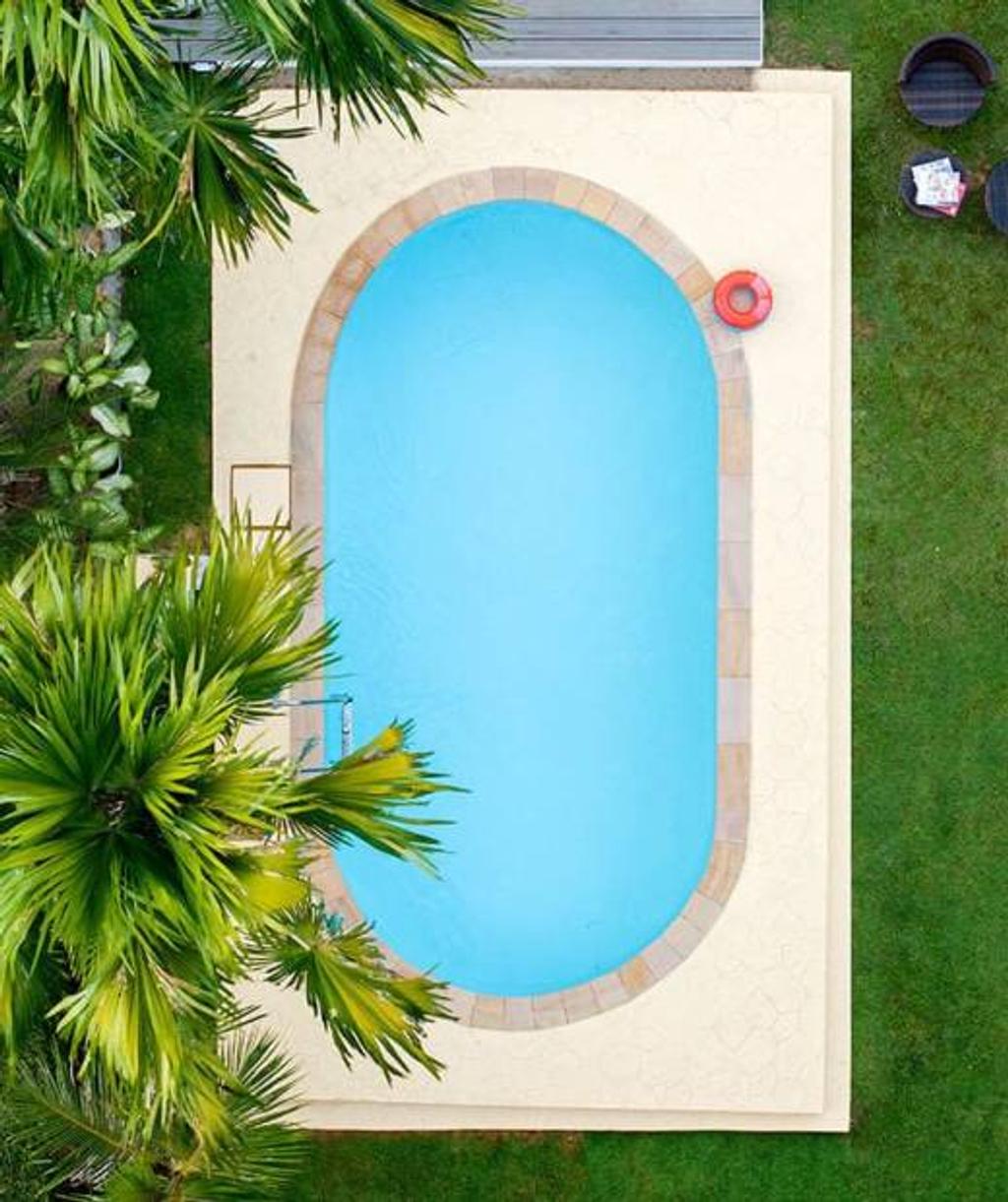

The pool body can be configured as an Oval shape, giving a modern look with two rounded ends. It can also be tailored to the customer’s living space — the pool’s length can be chosen to suit the area available.

Smooth curved design – soft and visually pleasing, and safer with no sharp corners.
Customizable pool length – proportions can be adjusted to match your actual space.
Easy and fast installation – with simple long-term maintenance.

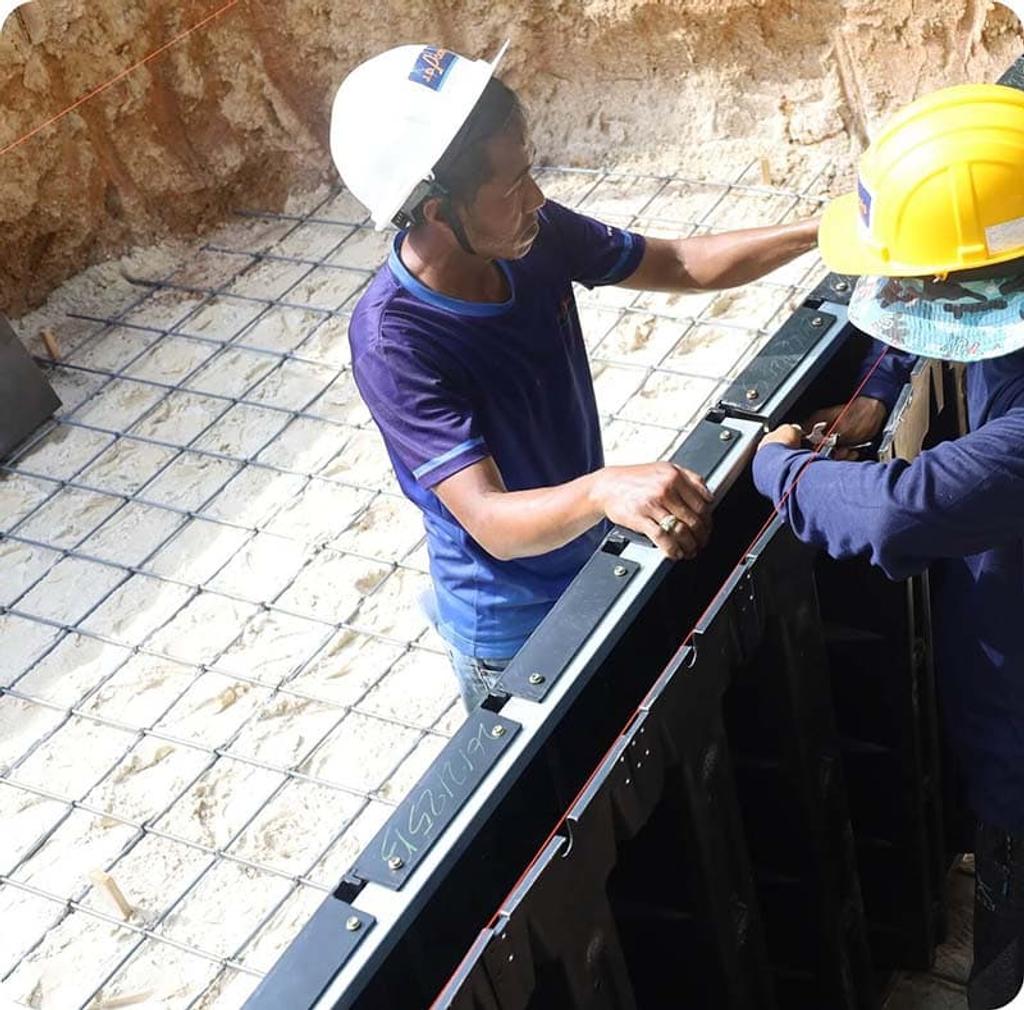

Intelligent Panel

A smart wall panel that adds extra reinforcement on the two main sides of the pool.

Made of polypropylene with concrete poured inside, it is exceptionally strong and eliminates leaks, settlement and cracking caused by external pressure on the pool. A registered J.D. Pools utility model (“Petty Patent”).

iSteel Pool

Pool Wall Structure

The iSteel Pool wall structure is manufactured from high-quality steel, hot-dip galvanized to protect against rust from within, in line with European standards. The surface is coated with a special two-layer protective coating to improve resistance to moisture and water-borne chemicals. It is strong, rust-resistant, safe and environmentally friendly. Wall thickness: 0.6 mm for pools up to 1.20 m deep.

iSteel Wall Specifications

High-quality steel wall, hot-dip galvanized to EN 10346
Additional protective coating in accordance with EN 10169
Excellent corrosion resistance — protection Class RC 3
Chromium-free paint, compliant with the REACH regulation

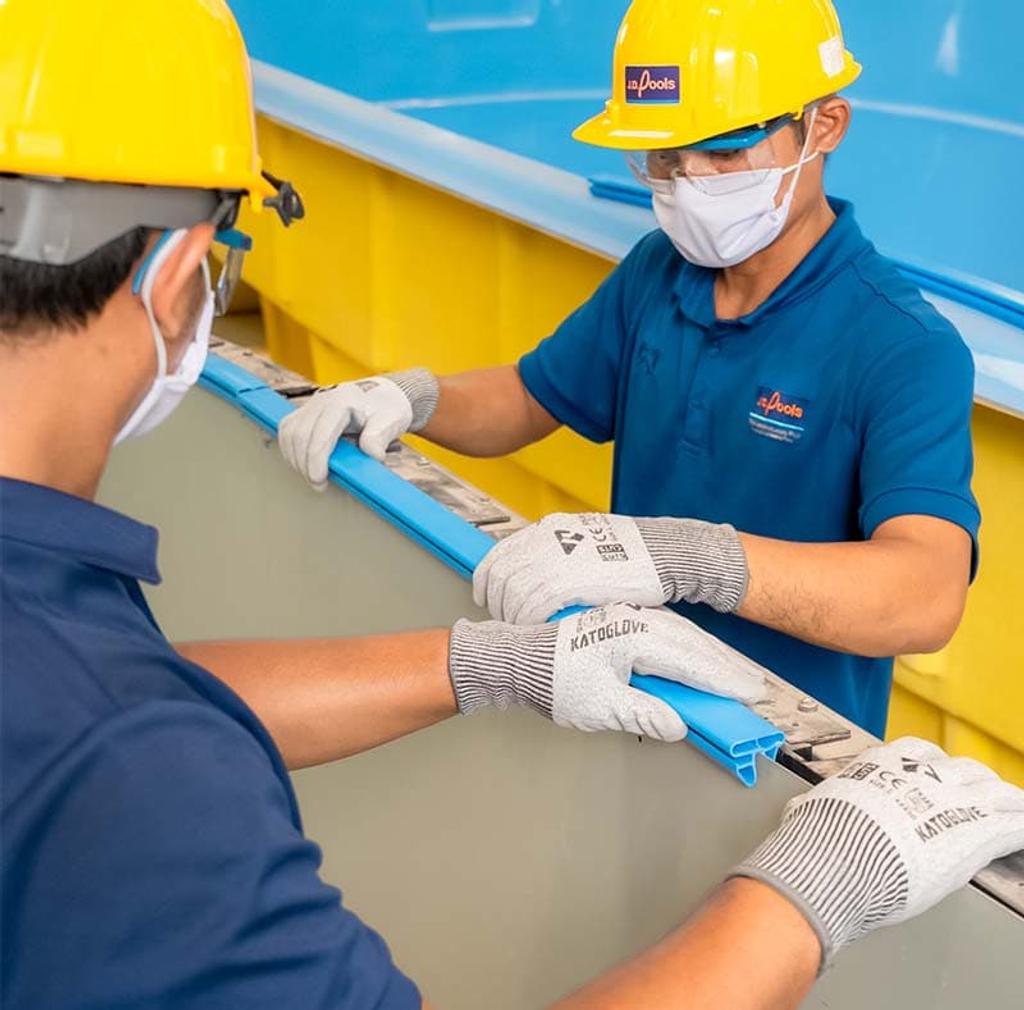

Installation: easy to install using an aluminum plug-profile edge-connection system.

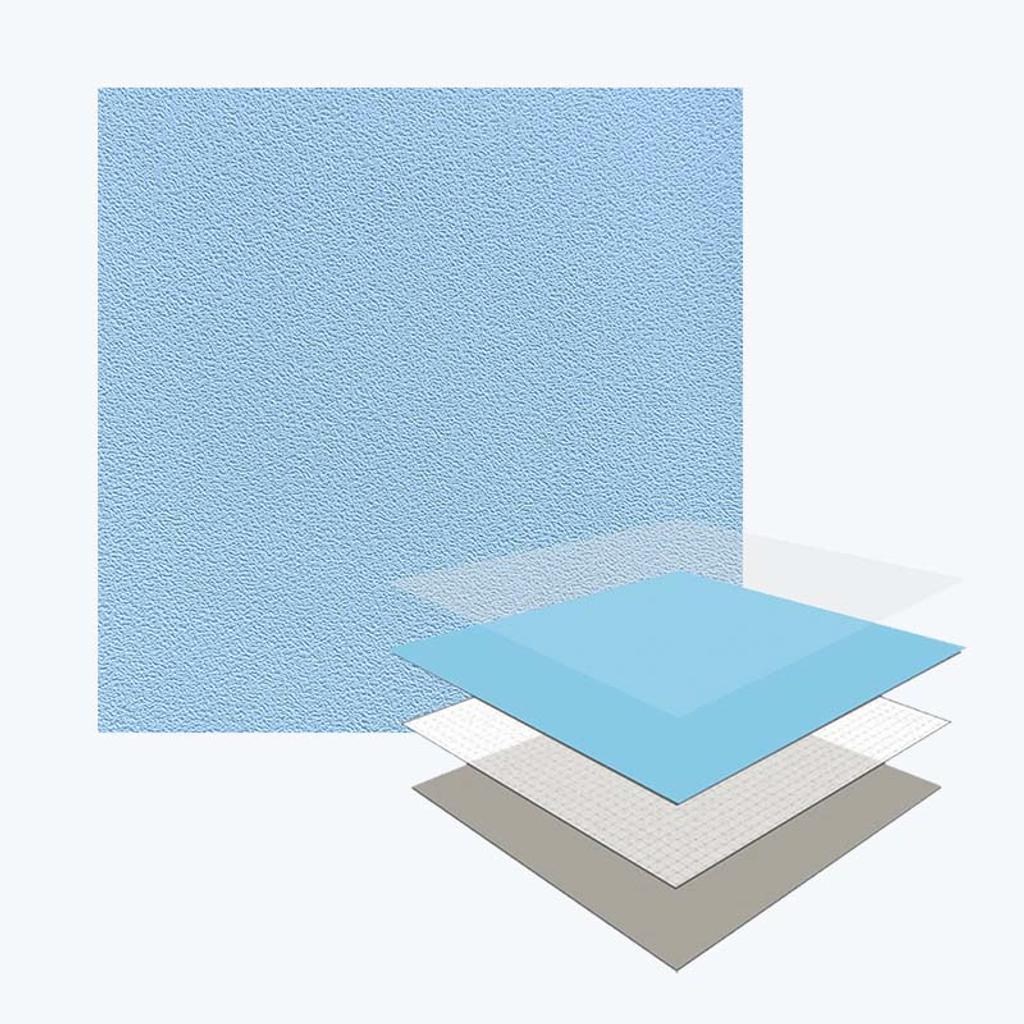

PVC Liner

Surface Lining (Liner)

The water-facing surface uses a prefabricated PVC liner produced at the factory, 1.0 mm thick. The PVC liner is UV-resistant and flexible, allowing for quick installation.

Filtration system

Smart Filtration System

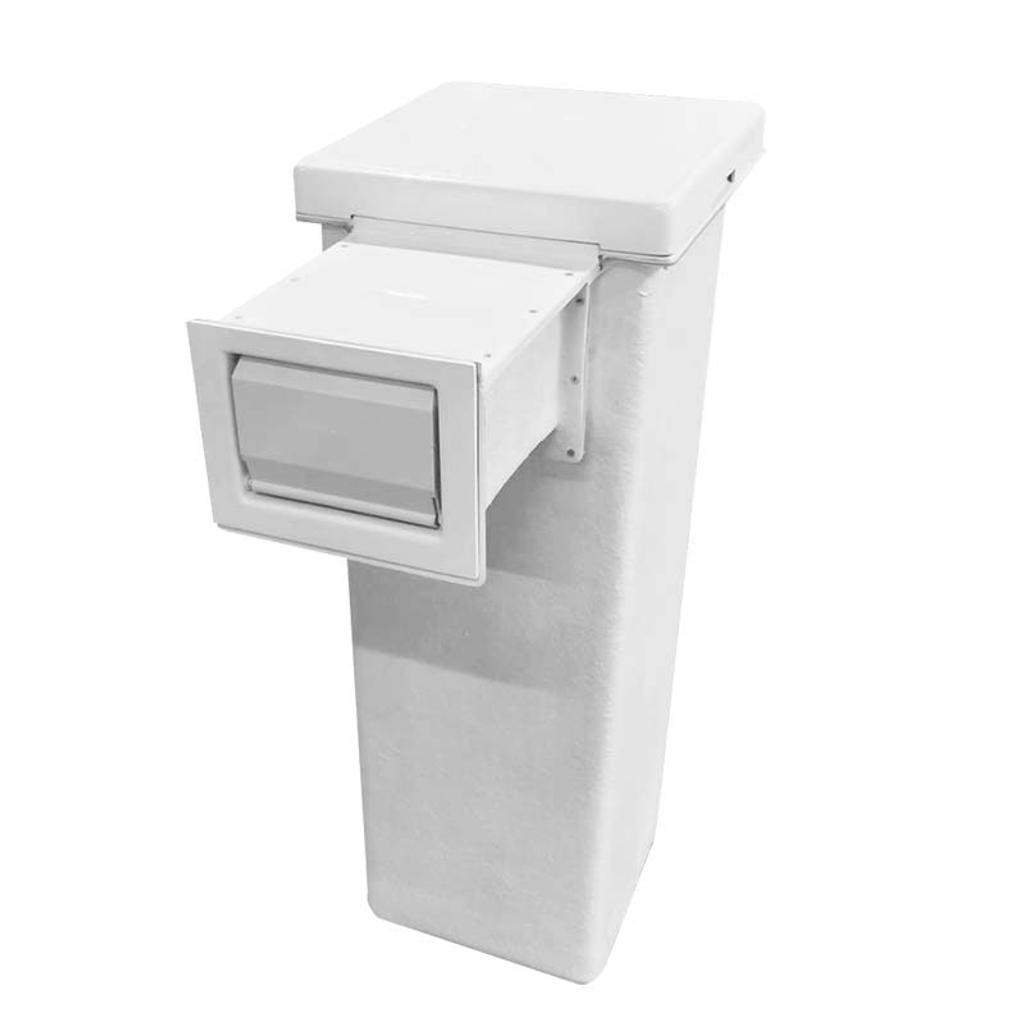

iSteel Pool comes with a fully assembled filtration package built around carefully selected, durable, energy-efficient components.

Structure made from high-quality fiberglass — strong, resistant to moisture and chemicals.
Compact design, well suited to pools with limited surrounding space.
The unit does not protrude into the pool, so it doesn’t intrude on the usable swimming area.
A separate pump room adds installation flexibility and makes servicing easier.
Less pipework means lower leakage risk and easier long-term maintenance.
Two-stage filtration:

Stage 1: Coarse basket filter to catch leaves, insects, etc.
Stage 2: Cloth filter bag with 5-micron filtration precision.

Specifications

MODEL	CL20-R
Power (Hp)	1.25 (47/16)
Rate (m3/hr)	20
Precision of filtration	5μ
Pool Volume (m3)	80

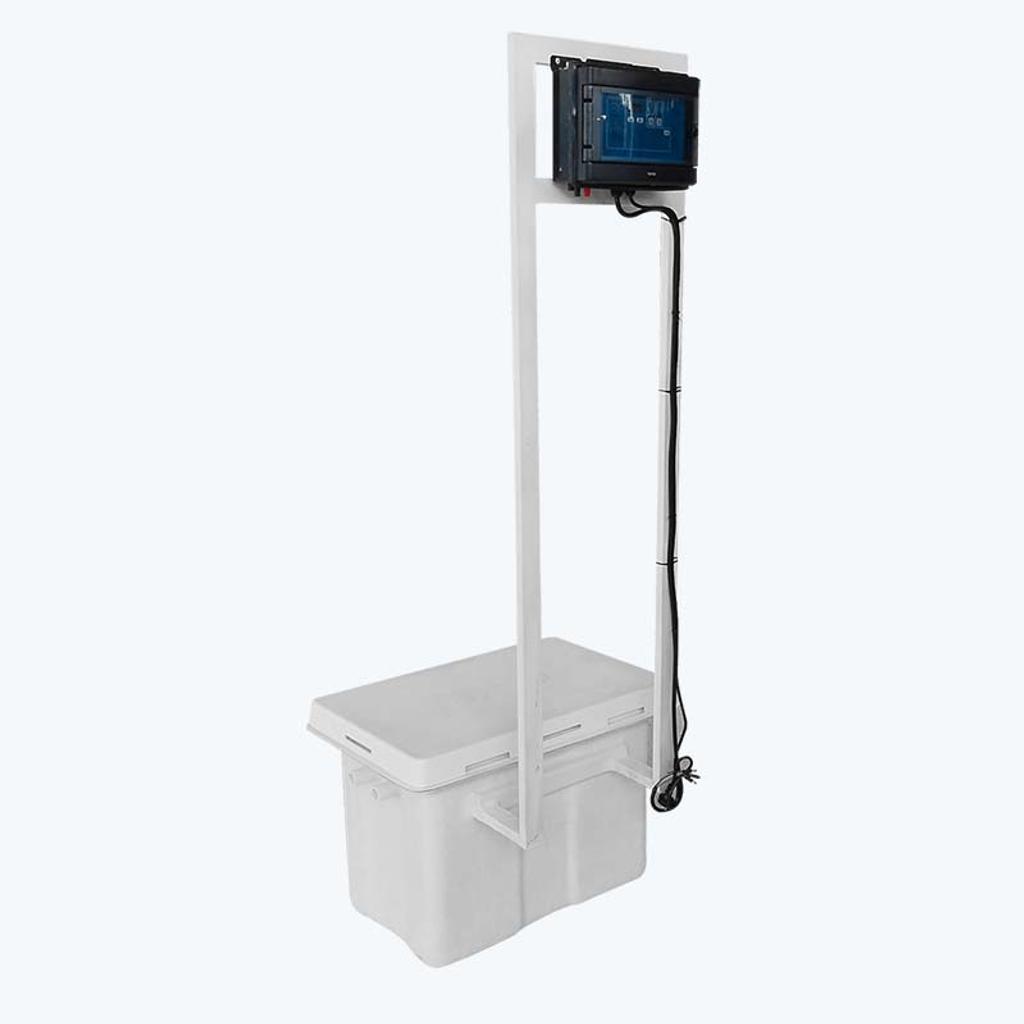

Pump room

Prefabricated Fiberglass Pump Room with Control Cabinet

A ready-made pump room manufactured from high-quality FRP (Fiberglass Reinforced Plastic) that resists UV light and chemicals. Strong and durable, it can be installed on the pool deck and comes with a piping and valve kit for connecting to the pump. This dramatically simplifies pump installation — just connect the suction and supply lines to the pool’s plumbing.
